Infographic: 13 Things to Know about Long-Range Shooting

1. A Long-Range Shot is anything after about 300 yards, depending on caliber.

Most modern rifle cartridges perform predictably out to 300 yards, give or take. At these shorter ranges, the bullet isn’t in flight long enough for gravity to have a major influence, so you can aim where you want the bullet to impact.

2. You must match the right equipment with ballistic science.

Tiny variables translate into big misses at long-range distances. Mastering fundamentals such as trigger press, sight picture, breathing, and heart rate control are critical skills.

What’s really different is the importance of matching equipment like scopes, turrets and reticles with ballistic science.

3. Use ballistic charts and calculators to compensate for forgotten factors.

Gravity and the wind are the biggest variables, but other things come into play at longer ranges, too.

For example, the Coriolis Effect makes bullets drop or rise depending on whether you are shooting toward the east or west because of the rotation of the earth. It’s not significant until you’re shooting 1,000 yards or more, but it’s real.

Another factor is spin drift — the gyroscopic motion of a spinning bullet in flight causes deflection off target. The longer the distance, the greater the impact.

Fortunately, by using ballistic charts and calculators, shooters can predict the influence of these factors. As long as they estimate wind speed and direction accurately along the flight path, long-range hits are obtainable.

4. Gravity always wins

Gravity is a big deal, but thankfully it’s also easy to predict.

Suppose you have a rifle chambered in 308 Winchester and are shooting near sea level. The rifle is zeroed to impact right where you aim at 100 yards. If you shoot a 150-grain bullet at 2,820 fps, it will drop a whopping 408 inches by the time it travels 1,000 yards downrange. That’s 34 feet!

Gravity always wins, so the speed of a bullet doesn’t make it any less subject to the laws of physics. That said, a faster bullet gets to a target in less time, so it’s not subjected to gravity as long as a slower bullet. That’s why faster bullets appear to “defy gravity” more than slower ones.

5. ‘Tactical’ Turrets Aren’t Just for Military Use

Tactical, or exposed turrets, allow the long-range shooter to make precise adjustments to account for bullet drop, wind, and target movement.

For example, the Burris XTR II 4-20x50mm Riflescope will move bullet impact either .25 or .36 inches for each click at a distance of 100 yards. The turrets on the XTR II have enough “clicks” to account for more than 900 inches of bullet drop at a distance of 1,000 yards. If the shooter has time to make turret adjustments, they can obtain better precision than by using marks on the reticle to “hold over.”

6. Sophisticated Reticles Provide Fast Adjustments

Tactical turrets are great when time is available. When quick shots are required, graduated reticles fit the bill. Reticles such as the SCR Mil reticle have fine graduations calibrated using milliradians.

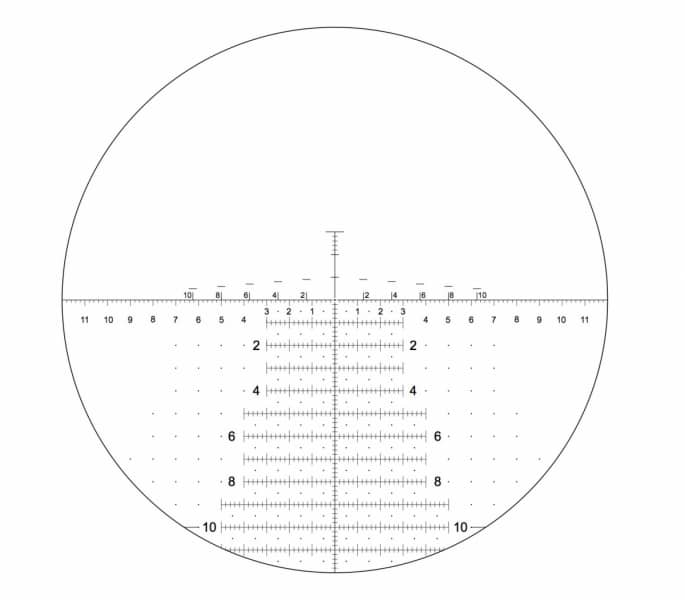

As an example, if a shot requires a 4.6 milliradian adjustment for bullet drop, the shooter can just place the appropriate reticle mark on the target rather than adjusting the turrets. Reticles like the Horus H591 available on the Burris XTR II have complex graduations that allow both elevation and windage holdover adjustments.

7. Blame It on the Wind

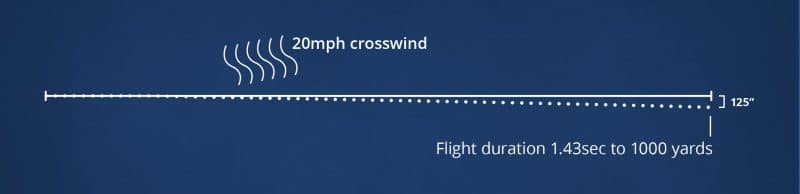

The longer a bullet is in flight, the more it can be moved by the wind.

A 1,000-yard shot using a 6.5 Creedmoor bullet will have a flight time of about 1.43 seconds. During that time, a 20-mph crosswind can blow that bullet 125 inches sideways. That’s more than 10 feet!

8. Best Calibers and Guns

The most important piece of gear is an accurate rifle chambered in a caliber suitable for long range. Calibers with small and light bullets, such as 223 Remington, are great for up to 500 yards or so, but those light bullets don’t do so well at 1,000 yards.

There are dozens of great calibers good for long-range shooting, and you’ll find many of them are in the 6mm, 6.5mm, 7mm, and .30 caliber range.

With enough bullet mass and case capacity to generate velocity, they have the basic elements needed for predictable long-range performance.

Shooters often talk about flat-shooting high-velocity calibers, but whether a bullet “shoots flat” or not isn’t a big deal. Gravity is constant and predictable, so whether a bullet drops 5 or 7 feet at some distance doesn’t really matter. What is much harder to predict is the impact of wind. Some calibers, such as 6.5 Creedmoor, fire streamlined and aerodynamic bullets that aren’t pushed around by the wind nearly as much. Therefore, they’re more forgiving when it comes to estimating the impact of the wind on a long shot.

9. Understanding Line-of-Sight

The dials, known as turrets, on a scope, adjust an internal tube which moves the reticle (crosshairs) relative to the bore of the rifle. The concept is just like a quarterback looking right at the receiver, even though he lobs the football high enough in the air to reach his target down the field.

For longer shots, the scope reticle view angles down relative to the bore, which causes the bullet to be lobbed upward relative to the line-of-sight. This upward trajectory compensates for gravity, so the bullet impacts at the correct aim point far downrange, even though it drops during flight due to gravity.

10. What Is a Minute-of-Angle?

Since a rifle and scope have to work at any distance, adjustments are made in angular measurements. A minute-of-angle (MOA) is 1/60th of a degree. A degree is an angle that represents 1/360th of a circle. So, a minute-of-angle is 1/60th of 1/360th, or 1/21,600th of a circle.

If you create a 1-minute angle at the shooting bench and project it 100 yards downrange, it will be 1.04 inches wide. Since it’s an angular measure, it’s proportional and represents 2 inches at 200 yards, 3 inches at 300 yards, and so on.

Many scopes, like the Burris XTR II model 201043 have 1/4 MOA adjustments, so a single click adjusts the bullet’s point-of-impact 1/4 inch at 100 yards; four clicks equals 1 inch at 100 yards. Understanding MOA and knowing the adjustment calibration of your scope dial allows you to get on target quickly.

11. What Is a Milliradian?

A milliradian (commonly called a mil) is an angular measurement just like a minute-of-angle. Rather than 1/21,600th of a circle, a milliradian is 1/6,280th of a circle.

Since it’s a larger angle, 1 mil translates to 3.6 inches at 100 yards, or 36 inches (1 yard) at 1,000 yards.

Some militaries use different milliradian scales. The U.S. Army says there are 6,400 mils in a circle, while the Russians use a figure of 6,000. Just because.

Some scopes, like most of the Burris XTR II scope models, use .1 milliradian click adjustments on the turrets. Each click will move bullet impact .36 inches at a range of 100 yards.

12. A Good Scope and Reticle Will Help You Estimate Range

One of the original reasons for the invention of the milliradian system was to determine the range of targets optically. Since the measurements are angular, the shooter can use the milliradian marks in the reticle to observe a distance object of known size. A simple equation provides the distance.

Range = (Height of object in yards * 1,000) / (Height of object in mils)

For example, if fence posts in the area are 1 meter tall, and one appears to be 1.2 mils tall when viewed through the scope, it must be 833 yards away.

This is exactly why the Burris SCR Mil reticle features ranging sections calibrated by tenth mils on the vertical and horizontal crosshairs. That makes it easy to measure the milliradian size of objects precisely.

13. A Spotting Partner Provides More Than Moral Support

Spotters play an important role in long-range shooting. They can observe variables like wind and target movement while the shooter is focusing on setting up the shot. Spotters are also able to track the results of the shot by watching impact or even the “trace” in the air created by disturbance of the bullet’s forward motion and rotation through a high-quality spotting scope. If their spotting scope uses a matching setup to the riflescope, they can call out specific adjustments to the shooter. For example, the Burris Signature HD Spotting Scope has an optional eyepiece with the SCR Mil reticle. That allows the spotter to make corrective calls like “adjust 1.1 mils up, and .6 left.”

Many local clubs are investing in longer rifle ranges, so be sure to check those in your area. Because of the knowledge required to shoot safely at long range, you might need to become a member or even pass a certification to make sure you know how to keep all fired rounds within the confines of the backstop.

Taking a class is a great idea. If your local club doesn’t have any available, consider visiting Gunsite Academy or the NRA Outdoors Long-Range Shooting School Course. Here, you’ll learn a wide range of long-range skills including correct shooting form, ballistics, minute-of-angle and milliradian calibration, and wind and range estimation.

This infographic was produced in cooperation with Burris Optics.
